Inside the Precision: 9-Stage Process of Hydraulic Cylinder Manufacturing

Hydraulic Cylinders: The Backbone of Industrial Power

Hydraulic cylinders are the silent workhorses behind the motion and power in countless industries — from construction and mining to agriculture and marine operations. These linear actuators convert hydraulic energy into mechanical movement, powering a wide range of applications, from excavators to industrial presses.

What Are Hydraulic Cylinders?

At their core, hydraulic cylinders are devices that convert fluid pressure into force and motion. They consist of components such as a barrel, piston, rod, seals, and mounting hardware — all of which must be engineered with precision.

Their Industrial Importance

Given their role in moving massive loads and operating in extreme environments, these cylinders must be manufactured to meet strict durability, strength, and safety standards. Let’s dive into the journey of how a single hydraulic cylinder is brought to life.

Overview of the Manufacturing Process

Creating a hydraulic cylinder involves more than just shaping metal. It requires meticulous planning, skilled labor, advanced machinery, and robust quality control. Our manufacturing process unfolds over nine core stages, transforming raw materials into a ready-to-use, pressure-tested hydraulic solution.

Step 1: Raw Material Selection

Steel Pipes & Rods

The journey begins with the selection of high-quality steel tubes and chrome rods. These materials form the basis of the cylinder barrel and piston rod, ensuring longevity and structural integrity.

Quality Standards

We strictly adhere to industry standards like ASTM A513 and DIN ST52.3 to ensure mechanical strength, machinability, and resistance to fatigue and wear.

Step 2: CNC Cutting and Honing

Pipe Cutting Precision

CNC machines are used to cut steel pipes to exact lengths. This eliminates manual error and ensures consistency across batches.

Honing for Smoothness

Honing smooths the inner surface of the cylinder barrel, reducing friction and enhancing the performance of the piston seal. This step is critical for minimizing wear during operation.

Step 3: Machining of Cylinder Components

Piston Rods and Eye Ends

Rods are precisely ground and machined for perfect fitment. Eye ends or clevises are shaped based on client specifications.

Port and Gland Machining

Drilling of fluid entry and return ports, and threading of gland nuts are all performed using high-precision CNC equipment.

Step 4: Chrome Plating and Polishing

Rust Resistance

Chrome plating adds a layer of protection against corrosion, increasing the life span of the piston rod, especially in outdoor or marine environments.

Mirror Finishing

Once plated, the rods are polished to a mirror finish, reducing seal wear and allowing smooth operation under pressure.

Step 5: Welding and Assembly

Base and Head Welding

Barrels are welded with base and end caps using MIG or TIG welding techniques, ensuring leak-proof joints.

Mounting Points

Mounting lugs, flanges, and trunnions are added at this stage as per custom application requirements.

Step 6: Heat Treatment

Durability Enhancement

Heat treatment is applied to specific parts like rod ends or eye mounts to improve hardness and resistance to impact or fatigue.

Step 7: Pressure Testing and Quality Checks

Leak Testing

Each hydraulic cylinder is tested at high pressure — usually 1.5 times the working pressure — to ensure no leakage or deformation occurs.

Dimensional Inspection

We perform tolerance checks on every component to guarantee dimensional accuracy.

Step 8: Painting and Surface Finishing

Powder Coating

A corrosion-resistant powder coat is applied in a controlled environment. Red, black, and yellow are the most requested finishes.

Custom Paint

We also offer custom branding and paint schemes based on customer preferences.

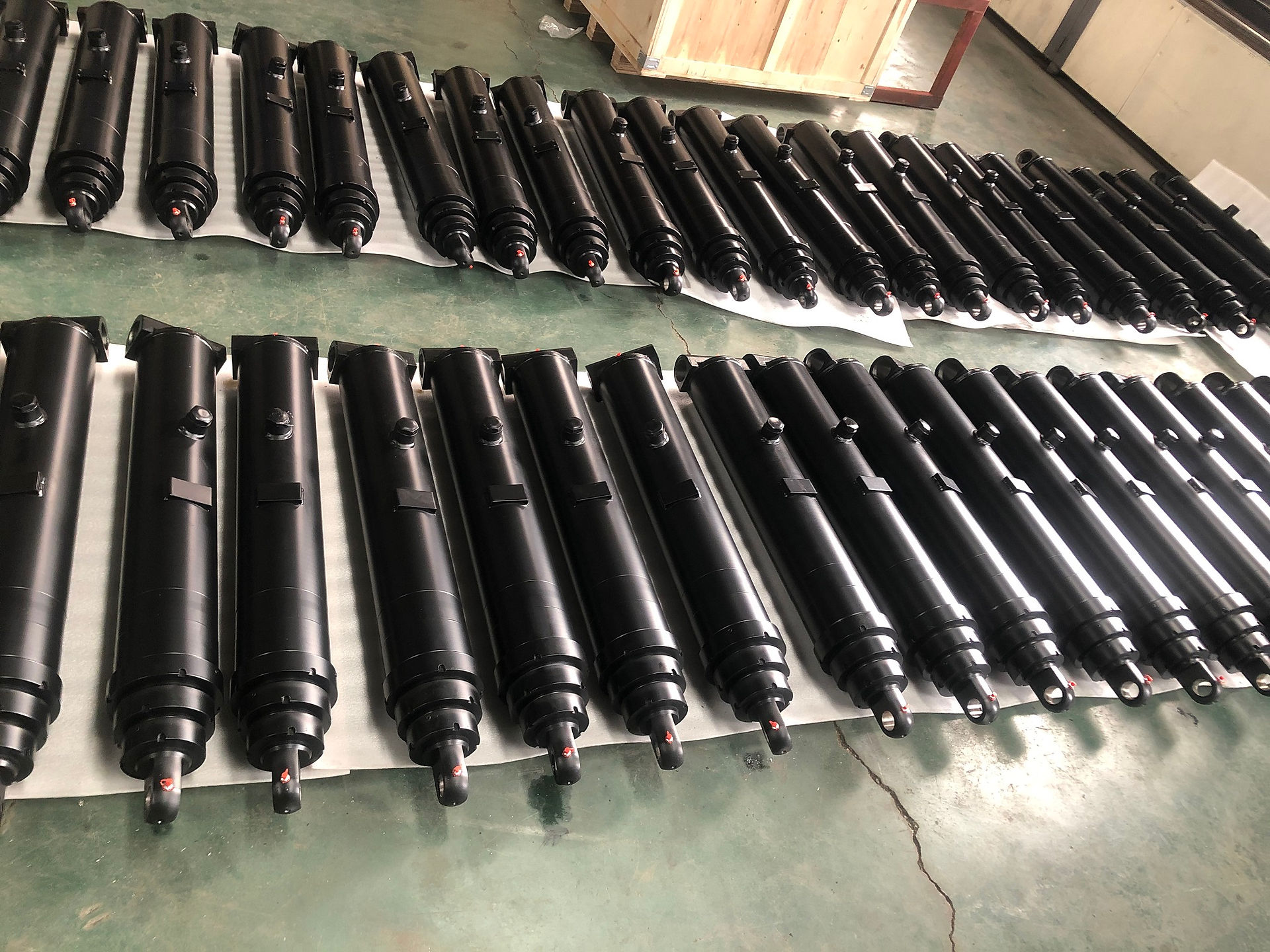

Step 9: Final Packaging and Shipping

Wrapping and Palletizing

Each finished cylinder is wrapped with protective film and bundled into wooden crates or steel pallets.

Container Loading

The goods are then loaded into shipping containers with reinforced strapping, ensuring they arrive at your facility in top condition.

Key Quality Control Protocols

We adhere to strict ISO standards including ISO 9001:2015. Every stage has documented inspection checklists — from raw material certifications to final QC approval.

Environmental Considerations

We actively recycle machining chips and steel cut-offs. Eco-friendly coatings and solvent-free degreasers are used during finishing.

Applications Across Industries

Hydraulic cylinders are vital in:

• Construction – backhoes, loaders, cranes

• Agriculture – plows, harvesters

• Marine – steering and hatch controls

• Mining – drills and transport machinery




Conclusion: Strength in Every Cylinder

From raw steel to reliable strength, the journey of every hydraulic cylinder we manufacture is a testament to engineering excellence, rigorous standards, and customer focus. With every shipment, we deliver not just a product — but performance you can count on.
